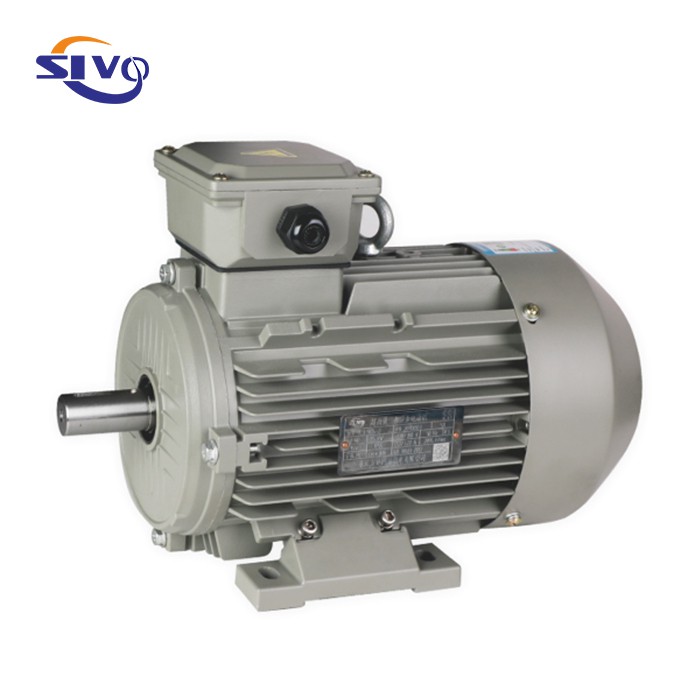

Single Phase Induction Motor
Single Phase Induction Motor core is cold-rolled silicon steel sheet, F-grade insulation, high heat-resistant temperature, strong impact resistance, long insulation life.
Introducing the Single Phase Induction Motor – A cost-effective, energy-efficient solution for your business needs!
If you're searching for a reliable and affordable solution for your industrial or commercial needs, look no further than the single-phase induction motor. At our China-based manufacturing facility, we offer an extensive range of high-quality single-phase induction motors that excel in performance, efficiency, and durability.
Our single-phase induction motor is designed for universal use and can be utilized in a variety of applications such as pumps, compressors, conveyors, ventilation and other rotating equipment. Whether you're working in agriculture, manufacturing, construction, or any other industry, our single-phase induction motor is the perfect choice to power your equipment.
So what sets our single-phase induction motor apart?
First and foremost, our motors feature high-efficiency levels that make them ideal for reducing your energy consumption and lowering your operating costs. Our engineers use the latest technology and advanced methodologies to create motors that require less energy to operate, translating to significant cost savings over time.
In addition to energy efficiency, our single-phase induction motor is also incredibly durable and reliable. We use high-quality materials and manufacturing techniques to create a robust motor that can perform even under challenging operating conditions. Whether you're using the motor in a harsh environment or a high-temperature application, you can depend on our single-phase induction motor to deliver consistent results.
Our motors are also incredibly easy to install and maintain. With a compact design and user-friendly features, you can quickly mount and connect the motor without any specialized knowledge or training. Additionally, our motors require minimal maintenance, reducing downtime and increasing productivity.
When it comes to purchasing a motor, we understand that you may have specific requirements or preferences, which is why our single-phase induction motor is available in a wide range of sizes, power ratings, and configurations. We can tailor a motor to fit your unique specifications, ensuring that you get the perfect motor for your business needs.
In conclusion, our single-phase induction motor is a cost-effective, energy-efficient, and reliable solution that can power your business for years to come. Whether you're looking to replace an old motor or investing in a new system, our motors can help you maximize productivity, save on energy costs, and achieve your business goals.
If you have any questions or are interested in learning more about our single-phase induction motor, please don't hesitate to contact us. As a leading motor manufacturer, we are dedicated to providing exceptional service and support to our customers around the world.
Product Characteristics of Single Phase Induction Motor:
● Applicable to general places and machinery industry without special requirements, such as metal cutting machine tools, fans, pumps, transport machinery, mixers, agricultural machinery, food machinery, compressors, etc.
● Installation dimensions and power levels meet GB, DIN and IEC standards.
Ultra-high efficiency motor, the efficiency reaches IEC 60034- 30:2014 IE 4 or IE4 and GB 18613-2020 energy efficiency level 3 or 2.
● AC Electric Motor core is cold-rolled silicon steel sheet, F-grade insulation, high heat-resistant temperature, strong impact resistance, long insulation life.
● Induction Motor shell is made of aluminum alloy or cast iron with stable structure, low vibration, low noise, stable performance, safety and reliability.
Conditions of use of Single Phase Induction Motor:
● The altitude should not exceed 1000m; (The altitude above 1000m belongs to plateau motor and can be customized)
● The maximum ambient temperature should not exceed 40°C. Minimum ambient temperature does not exceed -15°C
● S1 working system
● Voltage fluctuation of power supply does not exceed (+5%) and frequency fluctuation does not exceed (+2%)
● Insulation grade F
● Protection level: IP54, IP55
● Cooling mode: IC411
● Installation methods include: IMB3, B5, B35, V1, B14, B34, etc.
Technical Data of Single Phase Induction Motor:
|
Type |
Output |
Rated current |
Speed (r/min) |
EFF. |
P.F. |
Ts/Tn |
Tmax/Tn |
Is/A |
||
|
220V |
230V |
240V |
||||||||
|
561-2 |
0.09 |
0.79 |
0.76 |
0.73 |
2800 |
56 |
0.92 |
0.5 |
1.7 |
2.5 |
|
562-2 |
0.12 |
0.99 |
0.95 |
0.91 |
2800 |
60 |
0.92 |
0.5 |
1.7 |
3.5 |
|
631-2 |
0.18 |
1.37 |
1.31 |
1.25 |
2800 |
65 |
0.92 |
0.4 |
1.7 |
5 |
|
632-2 |
0.25 |
1.87 |
1.79 |
1.72 |
2800 |
66 |
0.92 |
0.4 |
1.7 |
7 |
|
711 -2 |
0.37 |
2.73 |
2.61 |
2.5 |
2800 |
67 |
0.92 |
0.35 |
1.7 |
10 |
|
712-2 |
0.55 |
3.88 |
3.71 |
3.56 |
2800 |
70 |
0.92 |
0.35 |
1.7 |
15 |
|
801-2 |
0.75 |
5.14 |
4.92 |
4.71 |
2800 |
72.1 |
0.92 |
0.33 |
1.7 |
20 |
|
802-2 |
1.1 |
7.02 |
6.71 |
6.43 |
2800 |
75 |
0.95 |
0.33 |
1.7 |
30 |
|
90S-2 |
1.5 |
9.3 |
8.89 |
8.52 |
2800 |
77.2 |
0.95 |
0.3 |
1.7 |
45 |
|
90L-2 |
2.2 |
13.2 |
12.6 |
12.1 |
2800 |
79.7 |
0.95 |
0.3 |
1.7 |
65 |
|
100L1-2 |
3 |
1 7.6 |
16.8 |
16.1 |
2800 |
81.5 |
0.95 |
0.3 |
1.7 |
1 27 |
|
100L2-2 |
3.7 |
21.4 |
20.5 |
19.6 |
2800 |
82.6 |
0.95 |
0.3 |
1.7 |
155 |
|
561-4 |
0.06 |
0.61 |
0.58 |
0.56 |
1400 |
50 |
0.9 |
0.45 |
1.7 |
2 |
|
562-4 |
0.09 |
0.87 |
0.84 |
0.8 |
1400 |
52 |
0.9 |
0.45 |
1.7 |
2.5 |
|
631-4 |
0.12 |
1.06 |
1.02 |
0.97 |
1400 |
57 |
0.9 |
0.4 |
1.7 |
3.5 |
|
632-4 |
0.18 |
1.54 |
1.47 |
1.41 |
1400 |
59 |
0.9 |
0.4 |
1.7 |
5 |
|
711-4 |
0.25 |
2.01 |
1.92 |
1.84 |
1400 |
61.5 |
0.92 |
0.35 |
1.7 |
7 |
|
712-4 |
0.37 |
2.77 |
2.65 |
2.54 |
1400 |
66 |
0.92 |
0.35 |
1.7 |
10 |
|
801-4 |
0.55 |
3.88 |
3.71 |
3.56 |
1400 |
70 |
0.92 |
0.35 |
1.7 |
15 |
|
802-4 |
0.75 |
5.14 |
4.92 |
4.71 |
1400 |
72.1 |
0.92 |
0.32 |
1.7 |
20 |
|
90S-4 |
1.1 |
7.02 |
6.71 |
6.43 |
1400 |
75 |
0.95 |
0.32 |
1.7 |
30 |
|
90L-4 |
1.5 |
9.3 |
8.89 |
8.52 |
1400 |
77.2 |
0.95 |
0.3 |
1.7 |
45 |
|
100L1-4 |
2.2 |
13.2 |
12.6 |
12.1 |
1400 |
79.7 |
0.95 |
0.3 |
1.7 |
65 |
|
100L2-4 |
3 |
17.6 |
16.8 |
16.1 |
1400 |
81.5 |
0.95 |
0.3 |
1.7 |
120 |
|
711-6 |
0.12 |
1.14 |
1.09 |
1.05 |
870 |
53 |
0.9 |
0.35 |
1.7 |
3.5 |
|
712-6 |
0.18 |
1.65 |
1.58 |
1.52 |
870 |
55 |
0.9 |
0.35 |
1.7 |
5 |
|
801-6 |
0.25 |
2.1 7 |
2.07 |
1.99 |
920 |
57 |
0.92 |
0.32 |
1.7 |
7 |
|
802-6 |
0.37 |
3.06 |
2.93 |
2.81 |
930 |
59.7 |
0.92 |
0.32 |
1.7 |
10 |
|
90S-6 |
0.55 |
4.13 |
3.95 |
3.79 |
940 |
65.8 |
0.92 |
0.32 |
1.7 |
15 |
|
90L-6 |
0.75 |
5.15 |
4.92 |
4.72 |
940 |
72 |
0.92 |
0.3 |
1.7 |
20 |
Mounting and Overall Dimensions of Single Phase Induction Motor:
|
Frame Size |
Mounting dimension |
Mounting dimension for B5(V1\V3) |
Mounting dimension for B14(V18\V19) |
Overall dimension |
||||||||||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
S |
T |
M |
N |
P |
S |
T |
AB |
AC |
AD |
HD |
L |
|
|
56 |
90 |
71 |
36 |
9 |
20 |
3 |
7.2 |
56 |
6 |
100 |
80 |
120 |
7 |
3 |
65 |
50 |
80 |
M5 |
2.5 |
111 |
113 |
96 |
155 |
200 |
|
63 |
100 |
80 |
40 |
11 |
23 |
4 |
8.5 |
63 |
7 |
115 |
95 |
140 |
10 |
3 |
75 |
60 |
90 |
M5 |
2.5 |
130 |
130 |
125 |
165 |
230 |
|
71 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
130 |
110 |
160 |
10 |
3.5 |
85 |
70 |
105 |
M6 |
2.5 |
145 |
145 |
140 |
180 |
255 |
|
80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
165 |
130 |
200 |
12 |
3.5 |
100 |
80 |
120 |
M6 |
3 |
160 |
165 |
150 |
200 |
295 |
|
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
165 |
130 |
200 |
12 |
3.5 |
115 |
95 |
140 |
M8 |
3 |
180 |
185 |
160 |
240 |
310 |
|
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
165 |
130 |
200 |
12 |
3.5 |
115 |
95 |
140 |
M8 |
3 |
180 |
185 |
160 |
240 |
335 |
|
100L |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
215 |
180 |
250 |
14.5 |
4 |
130 |
110 |
160 |
M8 |
3.5 |
205 |
205 |
200 |
280 |
390 |
SIVO Motor Also Produces Other Motors:
3 Phase AC Motor、AC Induction Motor、3 Phase AC Induction Motor、Aluminum Motor、Low Rpm AC Motor、Brushless AC Servo Motor、Brushless AC Electric Motor、Low Rpm Motor 220V、High Torque AC Motor
