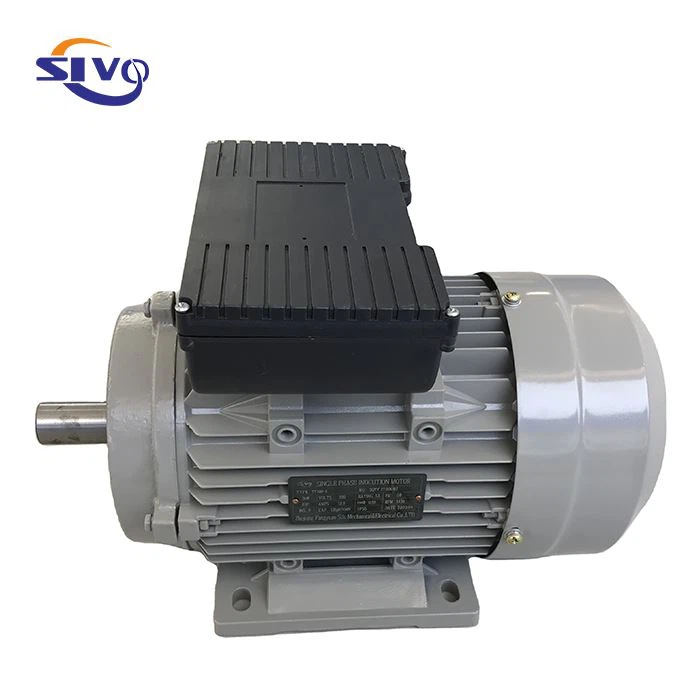

Single Phase Electric Motors
YY Capacitor Running Single-phase Asynchronous Motor is commonly known as capacitor-running motors, which are characterized by small starting torque and high-power factor.
Single Phase Electric Motors - Introduction & Advantages
Single phase electric motors are one of the most widely used electric motors globally. These motors are driven by an electric power source, supplying consistent energy to deliver movement, and available in many sizes and different voltages.
Single phase electric motors are used in a vast range of applications, including home appliances, such as swimming pool pumps, air compressors, refrigeration units, conveyor systems, blowers, and much more.
If you are in search of a high-quality single-phase electric motor, you are in the right place. Our experts have years of experience in fabricating only the best of electric motors, and our single-phase electric motors are no exception.
The following are some of the standout benefits of our single-phase electric motors, which we believe will make your business stand out and provide high-quality products to your customers.
Reliability
One of the most significant benefits of our single-phase electric motors is their reliability. Failures can lead to downtimes, and production loss, so, a reliable motor can ensure your production line keeps running.
Our single-phase electric motors are manufactured using only the highest quality materials, ensuring long-lasting operation and exceptional reliability. Our motors are designed and tested to operate under almost any usage condition and are guaranteed to run smoothly, even under heavy loads.
Low maintenance
Our single-phase electric motors have minimal maintenance requirements. They have no brushes, which means less-frequent motor maintenance since the brushes wear out and require replacement.
Since they have fewer mechanical components to maintain, our single-phase motor requires no fine-tuning or setting up. This feature makes it easier to operate and saves time and money.
Operating cost
Our single-phase electric motors are highly energy-efficient, with a power factor of up to 0.85, they convert about 85% of the input power into usable mechanical energy. This level of efficiency ensures less energy is wasted and translates into a significant reduction in power usage.
Moreover, the high level of energy efficiency on these motors leads to a lower operating cost, which creates an advantage in the marketplace by offering customers a cost-effective solution.
Low noise emission
Our single-phase electric motors are designed and engineered with low noise emissions. With their cutting-edge technology, our motors run soundlessly.
This feature makes our single-phase electric motor ideal for quiet environments such as hospitals, libraries, and classrooms, where a noisy motor can be a distraction.
Easy installation
Our single-phase motor design makes them easy to install; some come with user manuals making it easy to install and troubleshoot. This feature is critical to the speed and maintenance of production lines.
Cost-effectiveness
Last but not least, our single-phase electric motors are offered at highly competitive prices that make them cost-effective. They can perform with the same level of quality and reliability as larger 3-phase motors, eliminating the expense of unnecessary costly equipment.
Final thoughts
As a business owner, you are always searching for ways to maximize your profits while keeping your operating costs low to remain competitive. By providing your customers with high-quality, reliable, and cost-effective single-phase electric motors, you are never far from success.
Investing in our single-phase electric motors enables you to market high-quality and energy-efficient products that will be highly regarded and satisfy the quality demands of your customers. Contact us today to discuss your individual needs and benefit from our expert knowledge!
Product Generalization of YY Capacitor-running Single-phase Asynchronous Motor:
YY Capacitor-running Single-phase Asynchronous Motor ,since it is only need single phase alternating current, so easy to use, wide application, and it has simple structure, low cost, low noise, little interference to radio system and so on, it is widely used in small household electrical appliances and small power machinery, such as household water pump, smoke lampblack machine, electric drill, medical apparatus and instruments, small fan and reducer, etc.
Features of YY Capacitor Running Single-phase Asynchronous Motor:
● Insulation Class: F
● Protect Feature: Totally Enclosed
● Protection Class: IP54、IP55
● Cooling Method: IC411
● Color: ACCORDING TO CUSTOMERS
Technical Data of YY Capacitor Running Single-phase Induction Motor:
Type | Output | Rated Current A | Speed (r/min) | EFF. | P.F. | Ts/Tn | Tmax/Tn | Is/A | ||
220V | 230V | 240V | ||||||||
561-2 | 0.09 | 0.79 | 0.76 | 0.73 | 2800 | 56 | 0.92 | 0.5 | 1.7 | 2.5 |
562-2 | 0.12 | 0.99 | 0.95 | 0.91 | 2800 | 60 | 0.92 | 0.5 | 1.7 | 3.5 |
631-2 | 0.18 | 1.37 | 1.31 | 1.25 | 2800 | 65 | 0.92 | 0.4 | 1.7 | 5 |
632-2 | 0.25 | 1.87 | 1.79 | 1.72 | 2800 | 66 | 0.92 | 0.4 | 1.7 | 7 |
711 -2 | 0.37 | 2.73 | 2.61 | 2.5 | 2800 | 67 | 0.92 | 0.35 | 1.7 | 10 |
712-2 | 0.55 | 3.88 | 3.71 | 3.56 | 2800 | 70 | 0.92 | 0.35 | 1.7 | 15 |
801-2 | 0.75 | 5.14 | 4.92 | 4.71 | 2800 | 72.1 | 0.92 | 0.33 | 1.7 | 20 |
802-2 | 1.1 | 7.02 | 6.71 | 6.43 | 2800 | 75 | 0.95 | 0.33 | 1.7 | 30 |
90S-2 | 1.5 | 9.3 | 8.89 | 8.52 | 2800 | 77.2 | 0.95 | 0.3 | 1.7 | 45 |
90L-2 | 2.2 | 13.2 | 12.6 | 12.1 | 2800 | 79.7 | 0.95 | 0.3 | 1.7 | 65 |
100L1-2 | 3 | 1 7.6 | 16.8 | 16.1 | 2800 | 81.5 | 0.95 | 0.3 | 1.7 | 127 |
100L2-2 | 3.7 | 21.4 | 20.5 | 19.6 | 2800 | 82.6 | 0.95 | 0.3 | 1.7 | 155 |
561-4 | 0.06 | 0.61 | 0.58 | 0.56 | 1400 | 50 | 0.9 | 0.45 | 1.7 | 2 |
562-4 | 0.09 | 0.87 | 0.84 | 0.8 | 1400 | 52 | 0.9 | 0.45 | 1.7 | 2.5 |
631-4 | 0.12 | 1.06 | 1.02 | 0.97 | 1400 | 57 | 0.9 | 0.4 | 1.7 | 3.5 |
632-4 | 0.18 | 1.54 | 1.47 | 1.41 | 1400 | 59 | 0.9 | 0.4 | 1.7 | 5 |
711-4 | 0.25 | 2.01 | 1.92 | 1.84 | 1400 | 61.5 | 0.92 | 0.35 | 1.7 | 7 |
712-4 | 0.37 | 2.77 | 2.65 | 2.54 | 1400 | 66 | 0.92 | 0.35 | 1.7 | 10 |
801-4 | 0.55 | 3.88 | 3.71 | 3.56 | 1400 | 70 | 0.92 | 0.35 | 1.7 | 15 |
802-4 | 0.75 | 5.14 | 4.92 | 4.71 | 1400 | 72.1 | 0.92 | 0.32 | 1.7 | 20 |
90S-4 | 1.1 | 7.02 | 6.71 | 6.43 | 1400 | 75 | 0.95 | 0.32 | 1.7 | 30 |
90L-4 | 1.5 | 9.3 | 8.89 | 8.52 | 1400 | 77.2 | 0.95 | 0.3 | 1.7 | 45 |
100L1-4 | 2.2 | 13.2 | 12.6 | 12.1 | 1400 | 79.7 | 0.95 | 0.3 | 1.7 | 65 |
100L2-4 | 3 | 17.6 | 16.8 | 16.1 | 1400 | 81.5 | 0.95 | 0.3 | 1.7 | 120 |
711-6 | 0.12 | 1.14 | 1.09 | 1.05 | 870 | 53 | 0.9 | 0.35 | 1.7 | 3.5 |
712-6 | 0.18 | 1.65 | 1.58 | 1.52 | 870 | 55 | 0.9 | 0.35 | 1.7 | 5 |
801-6 | 0.25 | 2.1 7 | 2.07 | 1.99 | 920 | 57 | 0.92 | 0.32 | 1.7 | 7 |
802-6 | 0.37 | 3.06 | 2.93 | 2.81 | 930 | 59.7 | 0.92 | 0.32 | 1.7 | 10 |
90S-6 | 0.55 | 4.13 | 3.95 | 3.79 | 940 | 65.8 | 0.92 | 0.32 | 1.7 | 15 |
90L-6 | 0.75 | 5.15 | 4.92 | 4.72 | 940 | 72 | 0.92 | 0.3 | 1.7 | 20 |
Mounting and Overall Dimensions of YY Capacitor Running Single-phase Induction Motor:
Frame Size | Mounting Dimension | Mounting Dimension for | Mounting Dimension for B14(V18\V19) | Overall Dimension | ||||||||||||||||||||
A | B | C | D | E | F | G | H | K | M | N | P | S | T | M | N | P | S | T | AB | AC | AD | HD | L | |
56 | 90 | 71 | 36 | 9 | 20 | 3 | 7.2 | 56 | 6 | 100 | 80 | 120 | 7 | 3 | 65 | 50 | 80 | M5 | 2.5 | 111 | 113 | 96 | 155 | 200 |
63 | 100 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | 7 | 115 | 95 | 140 | 10 | 3 | 75 | 60 | 90 | M5 | 2.5 | 130 | 130 | 125 | 165 | 230 |
71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 130 | 110 | 160 | 10 | 3.5 | 85 | 70 | 105 | M6 | 2.5 | 145 | 145 | 140 | 180 | 255 |
80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 165 | 130 | 200 | 12 | 3.5 | 100 | 80 | 120 | M6 | 3 | 160 | 165 | 150 | 200 | 295 |
90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 12 | 3.5 | 115 | 95 | 140 | M8 | 3 | 180 | 185 | 160 | 240 | 310 |
90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 165 | 130 | 200 | 12 | 3.5 | 115 | 95 | 140 | M8 | 3 | 180 | 185 | 160 | 240 | 335 |
100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 215 | 180 | 250 | 14.5 | 4 | 130 | 110 | 160 | M8 | 3.5 | 205 | 205 | 200 | 280 | 390 |
SIVO Motor Also Produces Other Motors:
Premium Efficiency IE3 Motors、Premium Gold Motor、Metric IE3 Premium Motor、IE3 High-Performance Motors、Motors with IE3 Premium Efficiency、High efficiency electric motor、IE3 Premium Efficiency Electric Motor、IE3 Premium Motor.
Zhejiang Fangyuan Sifu Mechanical And Electrical Co., Ltd. is a high-tech enterprise focusing on motor R&D, manufacturing and sales. It is one of the core enterprises in the manufacturing sector of China's top 500 private enterprises, Fangyuan Group. The company's main products include cast iron single and three phase asynchronous motor series, aluminum housing single and three phase asynchronous motor series, fan special motor series, frequency conversion motor series, permanent magnet DC motor series and so on. Mainly used in water pump power, fan power, machine equipment power, agricultural machinery power, new energy vehicle power, marine equipment power and other fields.
