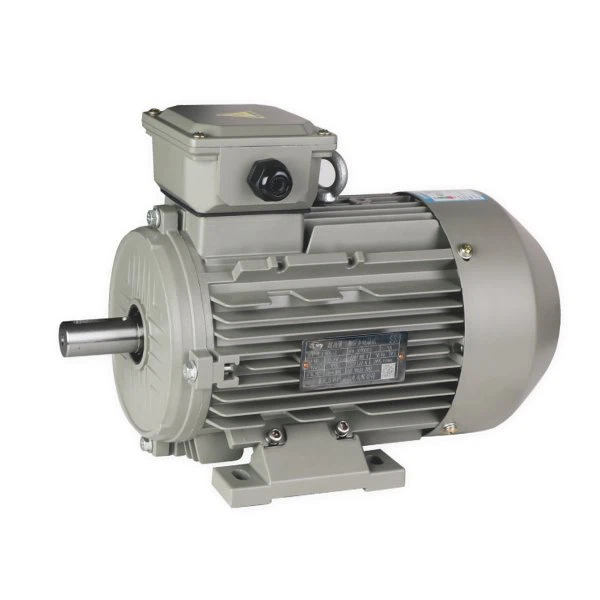

0.55kw-315kw IE2/IE3/IE4 Electric Three Phase Motor

Name: China Custom IE4 Electric Motor Manufacturers Suppliers Factory - Wholesale Service - SIVO
Brand: SIVO
SKU: 166923402

IE4 Electric Motor is a newly designed ultra-high-efficiency low-voltage three-phase asynchronous motor. It has the characteristics of high efficiency, high reliability, beautiful appearance, low noise, and low vibration.

Send Inquiry

We develop the market with the advantage of product science and technology innovation, establish the image with product quality and honest service, develop new Single Phase Cooler Motor, water cooler motor, Premium Efficiency IE3 Motors to expand new users, and consolidate the competitive strength of the enterprise. Collaboration is an important way for our company to achieve efficient operation and rapid development, and is an inevitable choice for the implementation of corporate development goals into the specific work of all employees. We are market-oriented, aiming at satisfying users' needs, possessing independent intellectual property rights, fulfilling social responsibilities and creating greater value for employees, users, funders, suppliers and society.

Product Characteristics of IE4 Electric Motor:

1. Applicable to general places and machinery industry without special requirements, such as metal cutting machine tools, fans, pumps, transport machinery, mixers, agricultural machinery, food machinery, compressors, etc.

2. Installation dimensions and power levels meet GB, DIN, and IEC standards.

3. Ultra-high efficiency motor, the efficiency reaches IEC 60034- 30:2014 IE 4 or IE4 and GB 18613-2020 energy efficiency level 3 or 2.

4. The motor core is cold-rolled silicon steel sheet, F-grade insulation, high heat-resistant temperature, strong impact resistance, long insulation life.

5. The motor shell is made of aluminum alloy or cast iron with stable structure, low vibration, low noise, stable performance, safety and reliability.

Conditions of Use of Motors:

● The altitude does not exceed 1000m; (more than 1000m altitude belongs to the plateau motor, can be customized)

●The maximum ambient temperature does not exceed 40℃

● The minimum ambient temperature does not exceed -15℃

● S1 working system

● The power supply voltage fluctuation does not exceed + 5% (10% is allowed for short time); the frequency fluctuation does not exceed + 2%

● Insulation class F

●Protection level: IP54, IP55

● Cooling method: IC411

●Installation methods include: IMB3, B5, B35, V1, B14, B34, etc.

Technical Data of IE4 Electric Motor

Type	Rated Output kW	Rated Speed min-1	Efficiency η % （IE4）	Power factor COSφ	Rated current A			Rated Torque Nm	Ts/Tn	Tmax/Tn	Is/In
Type	Rated Output kW	Rated Speed min-1	Efficiency η % （IE4）	Power factor COSφ	380V	400V	415V	Rated Torque Nm	Ts/Tn	Tmax/Tn	Is/In
YE4-80M1-2	0.75	2910	83.5	0.83	1.64	1.56	1.51	2.46	2.2	2.3	8.5
YE4-80M1-4	1.1	2920	85.2	0.83	2.36	2.25	2.16	3.6	2.2	2.3	8.5
YE4-90S-2	1.5	2930	86.5	0.85	3.1	2.94	2.84	4.89	2.2	2.3	9.0
YE4-90L-2	2.2	2930	88	0.86	4.42	4.2	4.04	7.17	2.2	2.3	9
YE4-100L-2	3	2935	89.1	0.87	5.88	5.59	5.38	9.76	2.2	2.3	9.5
YE4-112M-2	4	2940	90	0.88	7.67	7.29	7.03	13	2.2	2.3	9.5
YE4-132S1-2	5.5	2945	90.9	0.88	10.4	9.92	9.57	17.8	2	2.3	9.5
YE4-132S2-2	7.5	2950	91.7	0.89	14	13.3	12.8	24.3	2	2.3	9.5
YE4-160M1-2	11	2960	92.6	0.89	20.3	19.3	18.6	35.5	2	2.3	9.5
YE4-160M2-2	15	2960	93.3	0.89	27.4	26.1	25.1	48.4	2	2.3	9.5
YE4-160L-2	18.5	2960	93.7	0.89	33.7	32	30.9	59.7	2	2.3	9.5
YE4-180M-2	22	2965	94	0.89	40	38	36.6	70.9	2	2.3	9.5
YE4-200L1-2	30	2970	94.5	0.89	54.2	51.5	49.6	96.5	2	2.3	9
YE4-200L2-2	37	2970	94.8	0.89	66.6	63.3	61	119	2	2.3	9
YE4-225M-2	45	2975	95	0.89	80.9	76.8	74	144.5	2	2.3	9
YE4-250M-2	55	2975	95.3	0.89	98.5	93.6	90.2	176.6	2	2.3	9
YE4-280S-2	75	2980	95.6	0.89	134	127	123	240.4	1.8	2.3	8.5
YE4-280M-2	90	2982	95.8	0.89	160,	152	147	288.2	1.8	2.3	8.5
YE4-315S-2	110	2980	96	0.89	196	186	179	352.5	1.8	2.3	8.5
YE4-315M-2	132	2980	96.2	0.89	234	223	214	423	1.8	2.3	8.5
YE4-315L1-2	160	2980	96.3	0.89	284	269	260	512.8	1.8	2.2	8.5
YE4-315L2-2	200	2980	96.5	0.89	354	336	324	640.9	1.8	2.2	8.5
YE4-355M-2	250	2985	96.5	0.91	433	411	396	799.8	1.6	2.2	8.5
YE4-355L-2	315	2982	96.5	0.91	545	518	499	1009	1.6	2.2	8.5

IE4 Electric Motor Overall and Mounting Dimension(B3):

IE4 Electric Motor Overall and Mounting Dimension(B3)

FrameSize	Mountingdimension									Overalldimension
FrameSize	A	B	C	D	E	F	G	H	K	AB	AC	AD	BB	HD	L
80M	125	100	50	19	40	6	15.5	80	10X14	157	158	129	125	209	290
90S.	140	100	56	24	50	8	20	90	10X14	173	175	140	125	230	325
90L	140	125	56	24	50	8	20	90	10X14	173	175	140	150	230	350
1O0L	160	140	63	28	60	8	24	100	12X16	196	198	156	172	256	400
112M	190	140	70	28	60	8	24	112	12X16	227	219	166	180	278	450
132S	216	140	89	38	80	10	33	132	12X16	262	258	188	186	320	475
132M	216	178	89	38	80	10	33	132	12X16	262	258	188	224	320	515
160M	254	210	108	42	110	12	37	160	15X18	304	315	242	260	402	610
160L	254	254	108	42	110	12	37	160	15X18	304	315	242	304	402	655
