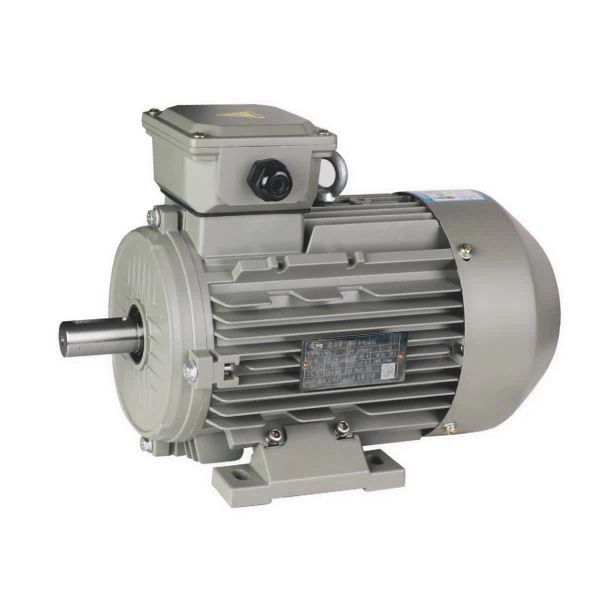

2.2kw 3kw 4kw 5.5kw 7.5kw 11kw 15kw 22kw Premium Efficiency Motor Ie2 Ie3 Series AC Motor

Name: China Motors With IE3 Premium Efficiency Manufacturers Suppliers Factory - Custom Service
Brand: SIVO
SKU: 166922172

Motors with IE3 Premium Efficiency have the advantages of reasonable structure, beautiful appearance, low noise, high protection level, and high insulation level.

Send Inquiry

We widely absorb the essence of similar merchandise internationally, and continuously build new merchandise to meet the demands of customers for Three phase Fan Motor, Metric IE3 Premium Motor, Cooling Fan Electric Motor. Strong technical force, exquisite workmanship, serious working attitude and perfect after-sales service have made our company famous and highly praised by customers. We adhere to the original intention and core values of doing business seriously, and are committed to providing better quality and perfect service to our customers. Our company will adhere to the long-term service concept of 'use our efforts to create customers' brilliance', and look forward to developing more extensive cooperation with customers all over the world with excellent products and efficient services. Our company advocates the enterprise spirit of 'professional, pragmatic, efficient, and innovative', and has a complete technical research and development force and a mature after-sales service team.

Features of Motors with IE3 Premium Efficiency:

The installation dimensions of Motors with IE3 Premium Efficiency conform to the IEC60034 standard. They have the advantages of reasonable structure, beautiful appearance, low noise, high protection level, and high insulation level. They can be widely used in fans, water pumps, machine tools, compressors and transportation machinery. This kind of general mechanical equipment can also be used in other harsh sound environments such as petroleum, chemical industry, steel, mining and so on.

Technical Data of Motors with IE3 Premium Efficiency:

Type	Rated Output kW	Rated Speed min-1	Efficiency η % （IE3）	Power factor COSφ	Rated current A			Rated Torque Nm	Ts/Tn	Tmax/Tn	Is/In	Weight kg
Type	Rated Output kW	Rated Speed min-1	Efficiency η % （IE3）	Power factor COSφ	380V	400V	415V	Rated Torque Nm	Ts/Tn	Tmax/Tn	Is/In	Weight kg
SGT3- 80M1-2	0.75	2880	80.7	0.82	1.72	1.64	1.58	2.49	2.3	2.3	7	18
SGT3-80M2-2	1.1	2880	82.7	0.83	2.43 ,	2.31	2.23	3.65	2.2	2.3	7.6	19.5
SGT3-90S-2	1.5	2895	84.2	0.84	3.22	3.06	2.95	4.95	2.2	2.3	7.9	23
SGT3-90L-2	2.2	2895	85.9	0.85	4.58	4.35	4.19	7.26	2.2	2.3	7.9	27
SGT3-100L-2	3	2895	87.1	0.87	6.02	5.71	5.51	9.9	2.2	2.3	8.5	39
SGT3-1 12M-2	4	2905	88.1	0.88	7.84	7.45	7.18	13.1	2.2	2.3	8.5	48
SGT3-132S1-2	5.5	2930	89.2	0.88	10.6	10.1	9.75	17.9	2	2.3	8.5	55
SGT3-132S2-2	7.5	2930	90.1	0.88	14.4	13.7	13.2	24.4	2	2.3	8.5	69
SGT3-1 60M1-2	11	2945	91.2	0.89	20.6	19.6	18.9	35.7	2	2.3	8.5	113
SGT3-1 60M2-2	15	2945	91.9	0.89	27.9	26.5	25.5	48.6	2	2.3	8.5	123
SGT3-160L-2	18.5	2940	92.4	0.89	34.2	32.5	31.3	60	2	2.3	8.5	142
SGT3-180M-2	22	2955	92.7	0.89	40.5	38.5	37.1	71.1	2	2.3	8.5	182
SGT3-200L1-2	30	2960	93.3	0.89	54.9	52.1	50.3	96.8	2	2.3	8.5	245
SGT3-200L2-2	37	2960	93.7	0.89	67.4	64	61.7	119.4	2	2.3	8.5	265
SGT3-225M-2	45	2965	94	0.9	80.8	76.8	74	144.9	2	2.3	8	323
SGT3-250M-2	55	2970	94.3	0.9	98.5	93.5	90.2	176.9	2	2.3	8	415
SGT3-280S-2	75	2975	94.7	0.9	1 34	127	122	240.8	1.8	2.3	7.5	546
SGT3-280M-2	90	2975	95	0.9	1 60	152	146	288.9	1.8	2.3	7.5	569
SGT3-315S-2	110	2978	95.2	0.9	195	185	179	352.8	1.8	2.3	7.5	897
SGT3-31 5M-2	132	2978	95.4	0.9	234	222	214	423.3	1.8	2.3	7.5	1029
SGT3-315L1-2	160	2980	95.6	0.91	279	265	256	512.8	1.8	2.3	7.5	1067
SGT3-315L2-2	200	2980	95.8	0.91	349	331	319	640.9	1.8	2.2	7.5	1195
SGT3-355M-2	250	2982	95.8	0.91	436	414	399	800.6	1.6	2.2	7.5	1685
SGT3-355L-2	315	2982	95.8	0.91	549	522	503	1009	1.6	2.2	7.5	1735

Motors with IE3 Premium Efficiency Overall and Mounting Dimension (B3/B5/B35):

Motors with IE3 Premium Efficiency Overall and Mounting Dimension (B3_B5_B35)

FrameSize	Pole	Mounting -dimension									Mounting dimension for B5(V1\V3)					Overall dimension
FrameSize	Pole	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	BB	HD	L
80M	2,4,6,8	125	100	50	19	40	6	15.5	80	4-Ф10	165	130	200	12	3.5	160	155.4	131	130	210	285
90S	2,4,6,8	140	100	56	24	50	8	20	90	4-Ф10	165	130	200	12	3.5	176	175.4	148	130	240	310
90L	2,4,6,8	140	125	56	24	50	8	20	90	4-Ф10	165	130	200	12	3.5	176	175.4	148	155	240	335
1OOL	2,4,6,8	160	140	63	28	60	8	24	100	4-Ф12	215	180	250	14.5	4	200	195.4	162	176	260	380
112M	2,4,6,8	190	140	70	28	60	8	24	112	4-Ф12	215	180	250	14.5	4	226	219.4	183	180	295	395
132S	2,4,6,8	216	140	89	38	80	10	33	132	4-Ф12	265	230	300	14.5	4	262	258.4	203	200	335	470
132M	4,6,8	216	178	89	38	80	10	33	132	4-Ф12	265	230	300	14.5	4	262	258.4	203	238	335	510
160M	2,4,6,8	254	210	108	42	110	12	37	160	4-Ф14.5	300	250	350	18.5	5	314	314	251	260	412	610
160L	2,4,6,8	254	254	108	42	110	12	37	160	4-Ф14.5	300	250	350	18.5	5	314	314	251	304	412	655
180M	2,4,8	279	241	121	48	110	14	42.5	180	4-Ф14.5	300	250	350	18.5	5	349	355	267	311	448	690
180L	4,6,8	279	279	121	48	110	14	42.5	180	4-Ф14.5	300	250	350	18.5	5	349	355	267	349	448	725
200L	2,4,6,8	318	305	133	55	110	16	49	200	4-Ф16.5	350	300	400	18.5	5	388	397	299	369	500	770
225S	4,8	356	286	149	60	140	18	53	225	4-Ф18.5	400	350	450	18.5	5	431	446	322	368	550	825
225M	2	356	311	149	55	110	16	49	225	4-Ф18.5	400	350	450	18.5	5	431	446	322	393	550	820
