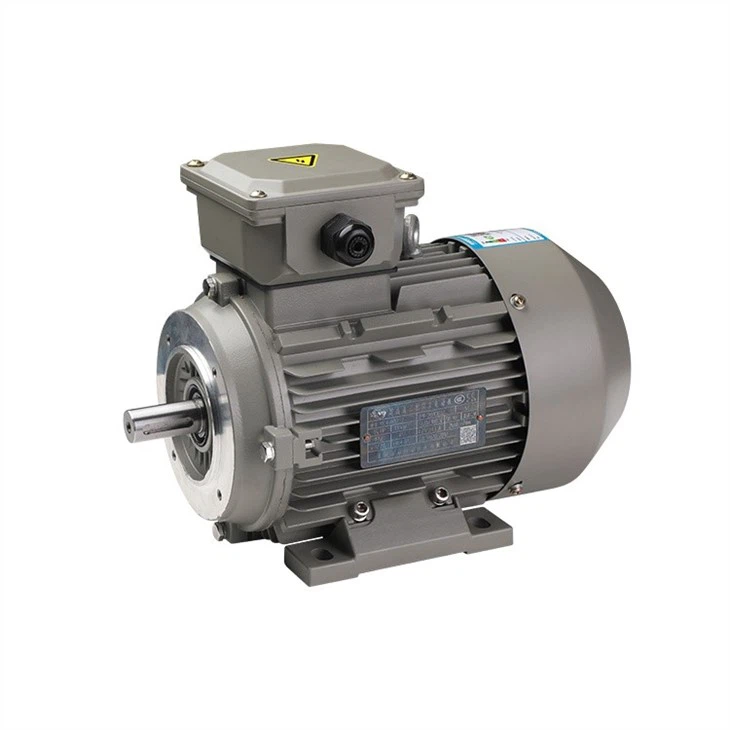

M2bax200MLB 37kw Ie3 Nuclear Power Plant 3 Phase Electric Motor 2p 400V

Name: China IE3 High-performance Motors Manufacturers Suppliers Factory - Custom Service - SIVO
Brand: SIVO
SKU: 166922019

IE3 High-Performance Motors conforms to the IEC60034 standard. It has a reasonable structure, beautiful appearance, noise, protection level, high insulation level, and can be widely installed with various general mechanical equipment.

Send Inquiry

Based on the global market, we win the trust of our customers with high quality high efficiency induction motor, Induction Motor Single Phase, ac condenser fan motor and enthusiastic services, continuously improve customer satisfaction, and be a close partner of our customers. In the future, we will pay more attention to safety, innovation, synergy, openness, green and shared development. Our company adheres to the concept of modern enterprise management: create the best service with fine management. Outstanding employees, advanced technology, sophisticated equipment, and strict management are the foundation for the company to continue to grow and grow, and the products can win the dependence of users. We hope that through our professional level and unremitting efforts, we can constantly meet the requirements of customers.

Conditions of Use of IE3 High-performance Motors:

● The altitude does not exceed 1000m; (more than 1000m altitude belongs to the plateau motor, can be customized)

● The maximum ambient temperature does not exceed 40℃

● The minimum ambient temperature does not exceed -15℃

●S1 working system

● The power supply voltage fluctuation does not exceed + 5% (10% is allowed for short time); the frequency fluctuation does not exceed + 2%

● Insulation class F

● Protection level: IP54, IP55

● Cooling method: IC411

● Installation methods include: IMB3, B5, B35, V1, B14, B34, etc.

Technical Data of IE3 High-performance Motors:

Type	Rated Output kW	Rated Speed min-1	Efficiency η % （IE3）	Power factor COSφ	Rated current A			Rated Torque Nm	Ts/Tn	Tmax/Tn	Is/In	Weight kg
Type	Rated Output kW	Rated Speed min-1	Efficiency η % （IE3）	Power factor COSφ	380V	400V	415V	Rated Torque Nm	Ts/Tn	Tmax/Tn	Is/In	Weight kg
SGY3-71M1-8	0.09	605	49	0.57	0.49	0.47	0.45	1.42	1.8	1.9	2.8	10
SGY3-71M2-8	0.12	605	50.7	0.57	0.63	0.6	0.58	1.89	1.8	1.9	2.8	11
SGY3-80M1-8	0.18	650	58.7	0.61	0.76	0.73	0.7	2.64	1.8	1.9	5.2	12
SGY3- 80M2-8	0.25	650	64.1	0.61	0.97	0.92	0.89	3.67	1.8	1.9	5.7	12.5
SGY3-90S-8	0.37	675	69.3	0.61	1.33	1.26	1.22	5.23	1.8	1.9	6.2	17.5
SGY3-90L-8	0.55	675	73	0.61	1.88	1.78	1.72	7.78	1.8	2	5.9	21.5
SGY3-100L1-8	0.75	685	75	0.67	2.27	2.15	2.08	10.5	1.8	2	6.2	29
SGY3-100L2-8	1.1	685	77.7	0.69	3.12	2.96	2.85	15.3	1.8	2	6.2	30.5
SGY3-1 12M-8	1.5	695	79.7	0.7	4.08	3.88	3.74	20.6	1.8	2	6.7	39
SGY3-132S-8	2.2	710	81.9	0.71	5.75	5.46	5.26	29.6	1.8	2	6.7	50
SGY3-132M-8	3	710	83.5	0.73	7.48	7.1	6.85	40.4	1.8	2	6.9	59
SGY3-160M1-8	4	725	84.8	0.73	9.82	9.33	8.99	52.7	1.9	2	6.9	92
SGY3-1 60M2-8	5.5	725	86.2	0.74	13.1	12.4	12	72.4	1.9	2	6.9	105
SGY3-160L-8	7.5	725	87.3	0.75	17.4	16.5	15.9	98.8	1.9	2	6.6	118

IE3 High-performance Motors Overall and Mounting Dimension (B5/B35):

IE3 High-Performance Motors Overall and Mounting Dimension (B5_B35)

Mounting dimension									Mounting dimension for B5(V1\V3)					Overall dimension
A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	BB	HD	L
90	71	36	9	20	3	7.2	56	ф7	100	80	120	7	3	111	113	96	88	150	200
100	80	40	11	23	4	8.5	63	7X9.5	115	95	140	10	3	123	120	102	100	165	218
112	90	45	14	30	5	11	71	7X11	130	110	160	10	3.5	138	136	109	110	180	245
125	100	50	19	40	6	15.5	80	10X14	165	130	200	12	3.5	157	158	129	125	209	290
140	100	56	24	50	8	20	90	10X14	165	1 30	200	12	3.5	173	175	140	125	230	325
140	125	56	24	50	8	20	90	10X14	165	130	200	12	3.5	173	175	140	150	230	350
160	140	63	28	60	8	24	100	12X16	215	1 80	250	14.5	4	196	198	156	172	256	400
190	140	70	28	60	8	24	112	12X16	215	1 80	250	14.5	4	227	219	166	180	278	450
216	140	89	38	80	10	33	132	12X16	265	230	300	14.5	4	262	258	188	186	320	475
216	178	89	38	80	10	33	132	12X16	265	230	300	14.5	4	262	258	188	224	320	515
254	210	108	42	110	12	37	160	15X1 8	300	250	350	18.5	5	304	315	242	260	402	610
254	254	108	42	110	12	37	160	15X18	300	250	350	18.5	5	304	315	242	304	402	655

SIVO MOTOR Also Produces Other Motors:

Air Conditioner Fan Motor、Cooling Fan Motor、Cooling Fan Electric Motor、Single Phase Cooler Motor、Three-Phase Cooler Motor、Air Cooler Motor、Cooler Fan Motor、Evaporative Cooler Motor、Air Cooler Fan Motor、High Speed Cooler Motor

Zhejiang Fangyuan Sifu Mechanical and Electrical Co., Ltd. has a technical management team with strong professional skills and excellent management capabilities. So far, it has obtained dozens of patent certificates (including 5 invention patents), participated in the formulation of 4 industry standards, and obtained 3C certification, CE Certification, ISO9001 management system certification, ISO45001 occupational health and safety management system certification, ISO14001 environmental management system certification, etc. It has also launched long-term technical cooperation with universities such as China Jiliang University and Zhejiang University of Technology to enhance core power in terms of innovation, stability, high efficiency, and energy saving.

Our M2bax200MLB 37kw Ie3 Nuclear Power Plant 3 Phase Electric Motor 2p 400V have many series, which are exported to domestic and foreign markets and are deeply loved by consumers. We hope to stimulate the vitality of employees and promote the continuous improvement of the overall performance and capabilities of the team. Through our own efforts, we have built up industry-leading product development, manufacturing, marketing and customer service capabilities.
