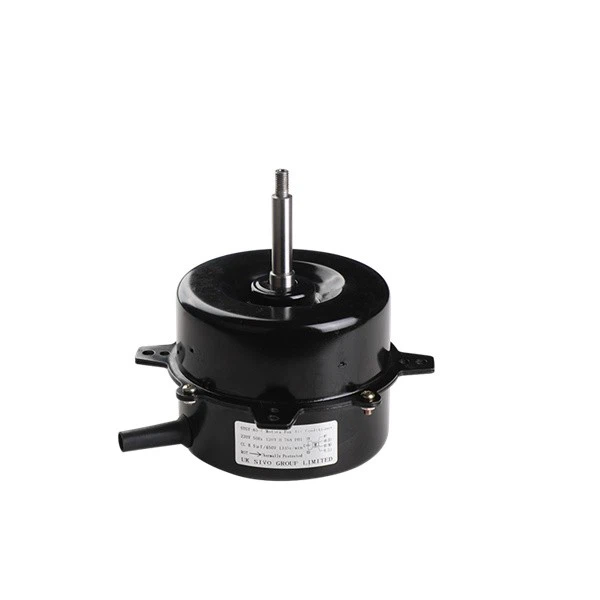

Rolling Mill Electrical DC Blower Fan 188kw Motor

Name: China Air Conditioner Blower Motor Manufacturers Suppliers Factory - Custom Service - SIVO
Brand: SIVO
SKU: 166926970

● Insulation class F
● Protection level: IP54, IP55
● Cooling method: IC411

Send Inquiry

The categories of our Brushless Cooling Fan Motor, Blower Motor, IE3 Premium Efficiency Electric Motor are diversified and their designs are fashionable, that's why they are highly competitive in the international market. The company adopts a modern management concept and gradually ascends to a global competitive platform. We treat our customers as God, provide honest, sincere, responsible, and friendly service, and treat our partners with contract and credit, and pursue win-win development.

Product Characteristics of Air Conditioner Blower Motor:

1. Portable air cooler for various working conditions:

Offices, outdoor temporary command centers, open workshops and other public places; equipment rooms with high precision requirements, equipment and instrument rooms, etc.; multi-purpose private houses, kitchens, etc.; often relocating and leasing buildings.

Main Technical Parameters of Air Conditioner Blower Motor:

● The power supply voltage fluctuation does not exceed ±5% (10% is allowed for short time); the frequency fluctuation does not exceed ±2%

● Insulation class F

● Protection level: IP54, IP55

● Cooling method: IC411

Technical Data of Air Conditioner Blower Motor:

Type	Rated Output kW	Voltage (V)	Frequency (Hz)	Amps (A)	Speed (r/min)	P.F.	Ts/Tn	Tmax/Tn	Is/(A)
SYGY-63S-4	0.06	220	50	0.75	1290	0.92	0.4	1.7	5
SYGY- 80S-4	0.12	220	50	1.3	1200	0.92	0.4	1.7	7
SYGY-90S1-4	0.2	220	50	1.9	1150	0.92	0.35	1.7	10
SYGY-90S1-6	0.15	220	50	1.3	940	0.92	0.35	1.7	15
SYGY-90S2-6	0.55	220	50	3.6	880	0.92	0.33	1.7	20
SYGY-90S3-6	0.75	220	50	4.5	900	0.95	0.33	1.7	30

Air Conditioner Blower Motor Mounting and Overall Dimensions:

Frame Size	Mounting dimension									Mounting dimension for B5(V1\V3)					Mounting Dimension for B14(V18\V19)					Overall dimension
Frame Size	A	B	C	D	E	F	G	H	K	M	N	P	S	T	M	N	P	S	T	AB	AC	AD	HD	L
63	100	80	40	11	23	4	8.5	63	7	115	95	140	10	3	75	60	90	M5	2.5	130	130	125	165	230
71	112	90	45	14	30	5	11	71	7	130	110	160	10	3	85	70	105	M6	2.5	145	145	140	1 80	255
80	125	100	50	19	40	6	15.5	80	10	165	130	200	12	3.5	100	80	120	M6	3	160	160	150	200	295
90S	140	100	56	24	50	8	20	90	10	165	130	200	12	3.5	115	95	140	M8	3	180	180	160	240	310
90L	140	125	56	24	50	8	20	90	10	165	130	200	12	3.5	115	95	140	M8	3	180	180	160	240	335

SIVO MOTOR Also Produces Other Motors:

Premium Efficiency IE3 Motors、Premium Gold Motor、Metric IE3 Premium Motor、IE3 High-Performance Motors、Motors With Ie3 Premium Efficiency、High Efficiency Electric Motor、IE3 Premium Efficiency Electric Motor、IE3 Premium Motor

Factory Live Shooting:

Zhejiang Fangyuan Sifu Mechanical and Electrical Co., Ltd. is located at No. 2479, Haifeng Road, Taizhou bay new area (3 kilometers from the east exit of Jiaojiang Coastal Expressway, 10 kilometers from Taizhou Airport, and 20 kilometers from Taizhou High-speed Railway Station). It covers an area of 43 acres and has a standardized workshop of 35,000 square meters. It is equipped with more than 50 sets of automatic CNC lathes, CNC grinders, CNC milling machines, machining centers, high-speed punching machines and other metal processing equipment, and equipped with automatic inserting winding line, spraying line, automatic assembly line and other advanced equipment, There are domestic leading wind tunnel laboratories, test centers, and motor type laboratories.

Our active team is keen to share knowledge and experiences with all customers and users, and we are always ready to provide the most competitive Rolling Mill Electrical DC Blower Fan 188kw Motor with continuous supports. Please contact us freely once you need details any time! The close connection between corporate mission and social development expresses our value orientation of pursuing corporate development in promoting the civilization and progress of the whole society and reflects our lofty pursuit. We will continue to forge ahead, accelerate development, and build our own global brand with 'character, responsibility, passion, and pioneering'.

Hot Tags: air conditioner blower motor, China air conditioner blower motor suppliers, manufacturers, factory, tubular single phase asynchronous motor, ie3 fan motor, Fan Motor, high efficiency induction motor, Asynchronous Motor, ie4 class motor
