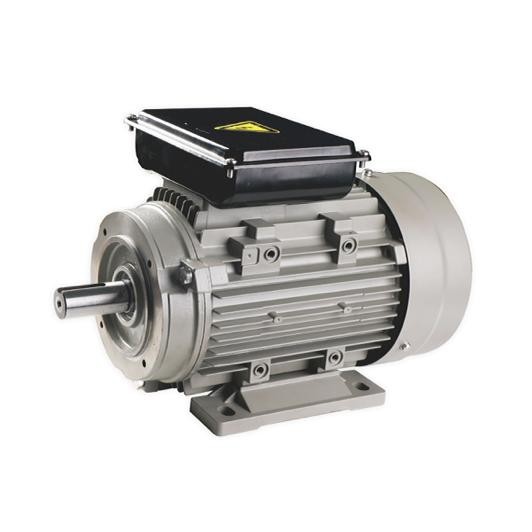

Ydk139-750-6 (0.75Kw) Aluminum Housing 100 % Copper Wire Ydk Series Single Phase Motor for Air Cooler Fan Induction Electric Motor 220V IEC Standard

Name: China Custom FRP Fan Motor Manufacturers Suppliers Factory - Wholesale Service - SIVO
Brand: SIVO
SKU: 166925217

Single Phase Asynchronous PSC Motor for Air Conditioner has high reliability, easy installation and simple control

Send Inquiry

Our company has always been in line with the corporate philosophy of creating high-quality high efficiency bldc motor, Blower Motor, High Efficiency Motor to serve customers, people-oriented, and honesty in the society. While we are developing ourselves, we bravely take up social responsibilities and continue to lead the industry to a green, intensive and innovative development model. We must continuously study various advanced theories, technologies and tools from home and abroad, and use them for ourselves to build and consolidate our company's core competitiveness. We practice the ideology that doing business is doing culture and the highest level of enterprise development is culture.

Product Characteristics of FRP Fan Motor:

FRP fan suitable for the following various working conditions:

1. Workshops with high temperature or odor: such as heat treatment plants, casting factories, plastics factories, aluminum products factories, shoe factories, leather goods factories, electroplating factories, printing and dyeing factories, various chemical plants; suitable for labor-intensive enterprises: such as garment factories , all kinds of assembly workshops, Internet cafes. The horticultural greenhouses are cooled and ventilated, and the livestock farms are cooled. It is especially suitable for places that need to cool down and need certain humidity: such as cotton spinning mill, wool spinning mill, hemp spinning mill, weaving mill, chemical fiber plant, warp knitting factory, bombing factory, knitting factory, Silk weaving factory, socks factory and other textile factories.

2. The motor adopts Class F insulation, high heat resistance temperature, strong impact resistance and long service life of insulation

3. The motor casing adopts tensile aluminum alloy, which has stable structure, beautiful surface, good heat dissipation, convenient installation and use, stable performance, safety and reliability.

Technical Data of FRP Fan Motor:

Type	Rated Output kW	Rated Speed min^-1	Rated Current A			Rated Torque Nm	Ts/Tn	Tmax/Tn	Is/In
Type	Rated Output kW	Rated Speed min^-1	380V	400V	415V	Rated Torque Nm	Ts/Tn	Tmax/Tn	Is/In
SAL1-100S-12	0.75	450	3	2.85	2.77	15.92	1.9	2	4
SAL1-100L-12	1.1	450	4	3.8	3.68	13.2	1.9	2	4.7
SAL1-1 12S-12	0.75	450	3	2.85	2.77	15.92	1.9	2	4
SAL1-1 12M-12	1.1	450	4	3.8	3.68	13.2	1.9	2	4.7
SAL1-112L-12	1.5	450	5.5	5.24	5.08	31 83	1.9	2	4.7
SAL1-132S-12	1.1	450	4.5	4.28	4.16	13.2	1.9	2	4.7

FRP Fan Motor Mounting and Overall Dimensions:

Type	Rated Output kW	Motor Housing Type	Installtion Size Axialxwidth (mm)	Mountingsurface Toshaft CenterHeight (mm)	Shaft Extension Diameter x Length (mm)	Step Length (mm)	Motor size Length x Width x Height (mm
SAL1-80-6	0.37	Aluminum Stretching Horizontal Barrel	100x125	80	φ19×65	10	255×156×182
SAL1-90-8	0.55		100x140	90	φ25.4×55		260×170×209
	0.75		125x140				260×170×209
SAL1-100-8	0.55		100x160	100		8	242×190×219
	0.75
SAL1-100-10	1.1		140x160				306×190×219
SAL1-100-12	0.75
SAL1-90-8	0.55	Aluminum Tensile Four- Section Sliding Trough Barrel (X type)	Two Diagonal Distance155	77			295×155×155
SAL1-100-8	0.55		Two Diagonal Distance184	92			230×185×185
	0.75						242×185×185
	1.5						306×185×185
SAL1-100-10	1.1
SAL1-100-12	0.75
SAL1-100-8	0.55	Aluminum Stretching Up And Down Drilling	70x100	90			234x180x180
	0.75
SAL1-100-10	0.55
SAL1-100-12	0.37
	0.55
SAL1-100-8	0.75	Aluminum Die- casting Four Feet	140x160	100			324x205x205
SAL1-100-10	1.1
SAL1-100-12	0.75
SAL1-112-10	1.1	Aluminum StretcheDown Groove	Chute Center Distance 110	90			242x180x180
	1.5						292x180x180
SAL1-112-12	0.75						242x180x180
	1.1						292x180x180

SIVO MOTOR Also Produces Other Motors:

Air Conditioner Fan Motor、Cooling Fan Motor、Cooling Fan Electric Motor、Single Phase Cooler motor、Three-phase Cooler Motor、Air Cooler Motor、Cooler Fan Motor、Evaporative Cooler Motor、Air cooler Fan Motor、High Speed Cooler Motor

Q: Do you offer OEM service and can you produce our drawings?

Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawing.

Zhejiang Fangyuan Sifu Mechanical And Electrical Co., Ltd. is a high-tech enterprise focusing on motor R&D, manufacturing and sales. It is one of the core enterprises in the manufacturing sector of China's top 500 private enterprises, Fangyuan Group. The company's main products include cast iron single and three phase asynchronous motor series, aluminum housing single and three phase asynchronous motor series, fan special motor series, frequency conversion motor series, permanent magnet DC motor series and so on. Mainly used in water pump power, fan power, machine equipment power, agricultural machinery power, new energy vehicle power, marine equipment power and other fields.
