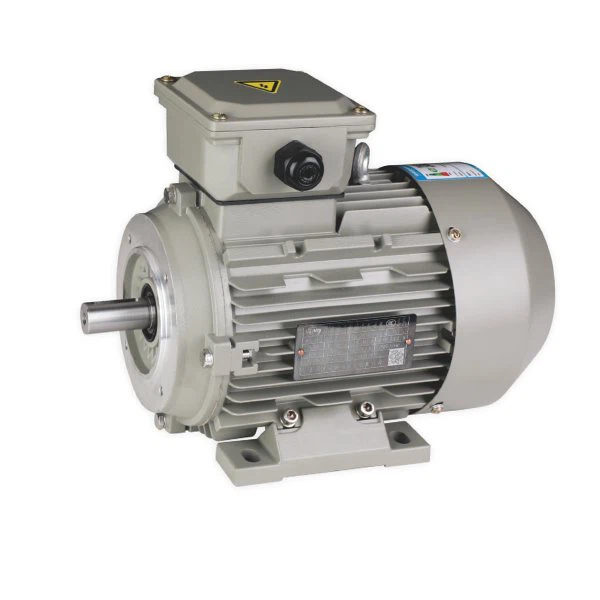

YE4 IE4 0.55-315kw Super Premium Efficiency Three Phase Induction Electric AC Asynchronous ...

Name: China IE4 Super Premium Standard Motors Manufacturers Suppliers Factory - Custom Service
Brand: SIVO
SKU: 166923856

IE4 Super Premium Standard Motors is suitable for places without special requirements and can drive various general machinery and equipment. It is widely used in machine tools, fans, compressors, conveyors, mixers, printing machines, agricultural machinery, packaging machines and other equipment.

Send Inquiry

'The more focused, the more professional' is the basis for us to become a leader in Negative Pressure Aluminum Fan Motor, tubular single phase asynchronous motor, Fan Motor. After continuous exploration and progress, we have formed the service concept of "focus on products, technological innovation, excellence, win-win cooperation". Our company adheres to the business philosophy of 'customers' requirements are our responsibility'. We have been deeply connected with customers and partners.

Conditions of Use of IE4 Super Premium Standard Motors:

●The altitude does not exceed 1000m; (more than 1000m altitude belongs to the plateau motor, can be customized)

● The maximum ambient temperature does not exceed 40℃

● The minimum ambient temperature does not exceed -15℃

● S1 working system

●The power supply voltage fluctuation does not exceed + 5% (10% is allowed for short time); the frequency fluctuation does not exceed + 2%

●Insulation class F

●Protection level: IP54, IP55

●Cooling method: IC411

●Installation methods include: IMB3, B5, B35, V1, B14, B34, etc.

Technical Data of IE4 Super Premium Standard Motors:

Type	RatedOutput kW	RatedSpeed min-1	Efficiency η % （IE4）	Powerfactor COSφ	Ratedcurrent A			RatedTorque Nm	Ts/Tn	Tmax/Tn	Is/In
Type	RatedOutput kW	RatedSpeed min-1	Efficiency η % （IE4）	Powerfactor COSφ	380V	400V	415V	RatedTorque Nm	Ts/Tn	Tmax/Tn	Is/In
YE4-90S-6	0.75	950	82.7	0.7	1.97	1.87	180	7.54	2.1	2.1	7.5
YE4-90L-6	1.1	955	84.5	0.7	2.83	2.68	2.59	11	2.1	2.1	7.5
YE4-100L-6	1.5	960	85.9	0.71	3.74	3.55	3.42	14.9	2.1	2.1	7.5
YE4-112M-6	2.2	965	87.4	0.71	5.39	5.12	4.93	21.8	2.1	2.1	7.5
YE4-132S-6	3	970	88.6	0.71	7.25	6.88	6.63	29.5	2	2.1	7.5
YE4-132M1-6	4	975	89.5	0.72	9.43	8.96	8.64	39.2	2	2.1	8
YE4-132M2-6	5.5	975	90.5	0.72	12.8	12.2	11.7	53.9	2	2.1	8
YE4-160M-6	7.5	980	91.3	0.76	16.4	15.6	15	73.1	2	2.1	8
YE4-160L-6	11	980	92.3	0.77	23.5	22.3	21.5	107.2	2	2.1	8.5
YE4-180L-6	15	985	92.9	0.8	30.7	29.1	28.1	145.4	2	2.1	8.5
YE4-200L1-6	18.5	985	93.4	0.8	37.6	35.7	34.4	179.4	2	2.1	8.5
YE4-200L2-6	22	985	93.7	0.81	44	41.8	40.3	213.3	2	2.1	8.5
YE4-225M-6	30	990	94.2	0.82	59	56.1	54	289.4	2	2.1	8.3
YE4-250M-6	37	990	94.5	0.83	71.7	68.1	65.6	356.9	2	2.1	8.3
YE4-280S-6	45	990	94.8	0.83	86.9	82.5	79.6	434.1	2	2	8.5
YE4-280M-6	55	990	95.1	0.84	105	99.4	95.8	530.6	2	2	8.5
YE4-315S-6	75	990	95.4	0.84	142	135	130	723.5	1.6	2	8
YE4-315M-6	90	990	95.6	0.85	168	160	154	868.2	1.6	2	8
YE4-315L1-6	110	990	95.8	0.85	205	195	188	1061	1.6	2	8
YE4-315L2-6	132	990	96	0.86	243	231	222	1273	1.6	2	8
YE4-355M1-6	160	990	96.2	0.86	294	279	269	1543	1.6	2	8
YE4-355M2-6	200	990	96.3	0.86	367	349	336	1929	1.6	2	8
YE4-355L-6	250	990	96.5	0.86	458	435	419	2412	1.6	2	8

IE4 Super Premium Standard Motors Overall and Mounting Dimension(B14A/B34A):

IE4 Super Premium Standard Motors Overall and Mounting Dimension(B14A_B34A)

FrameSize	Mountingdimension									MountingdimensionforB5(V1\V3)					Overalldimension
FrameSize	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	BB	HD	L
80	125	100	50	19	40	6	15.5	80	10X14	100	80	120	M6	3	157	158	129	125	209	290
90S	140	100	56	24	50	8	20	90	10X14	115	95	140	M8	3	173	175	140	125	230	325
90L	140	125	56	24	50	8	20	90	10X14	115	95	140	M8	3	173	175	140	150	230	350
1O0L	160	140	63	28	60	8	24	100	12X16	130	110	160	M8	3.5	196	198	156	172	256	400
112M	190	140	70	28	60	8	24	112	12X16	130	110	160	M8	3.5	227	219	166	180	278	450
132S	216	140	89	38	80	10	33	132	12X16	165	130	200	M10	3.5	262	258	188	186	320	475
132M	216	178	89	38	80	10	33	132	12X16	165	130	200	M10	3.5	262	258	188	224	320	515
160M	254	210	108	42	110	12	37	160	15X18	215	180	250	M12	4	304	315	242	260	402	610
160L	254	254	108	42	110	12	37	160	15X18	215	180	250	M12	4	304	315	242	304	402	655

SIVO Motor Also Produces Other Motors:

Vertical Pump Motor、Air Pump Motor、Centrifugal Pump Motor、Sewage pump motor、Fire pump motor、Booster pump motor、Spray Pump Motor、Horizontal submersible pump motor、Single Phase Pump Motor、Three-phase Pump Motor、Low RPM Electric Motor、Oil Pump Motor、Pool Pump Motor、Water Pump Motor、Vacuum Pump Motor、Well Pump Motor、Chemical Pump Motor

QUALITY CONTROL

We have a QC person stay on the production lines due to the inspection. All products must have been inspected before delivery. we do an inline inspection and final inspection.

1. All raw material checked once it arrives at our factory.

2. All pieces and logo and all details checked during production.

3. All packing details checked during production.

4. All production quality and packing checked on final inspection after finished.

If you are interested in our products, please contact us in time to get a more comprehensive solution! We can undertake technical negotiation and ordering of various special motors with special needs of users. Installation dimensions (including external dimensions) are made according to user requirements.
