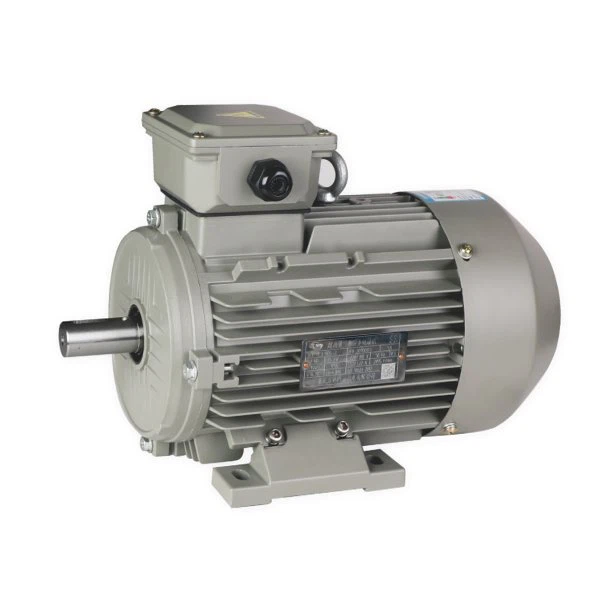

NHL Yjp Ie4 220V Fan Motor

Name: IE4 Super Premium Motors - China IE4 Super Premium Motors Manufacturers Suppliers Factory
Brand: SIVO
SKU: 166923687

IE4 Super Premium Motors is suitable for fans, pumps, compressors and construction machinery that require energy saving and continuous operation. Industrial sector.

Send Inquiry

We adhere to the Three-phase Fan Motor, Box Fan Motor, Air Conditioner Blower Motor business as the center, with the goal of improving the overall benefits of customers, and we are dedicated to providing fast, economical and thoughtful services to domestic and foreign customers. Adhering to the concept of "technology, innovation and development", we maintain our competitive advantages in technology, quality, cost and responsiveness with our mature management system to continuously meet the needs of our customers. The company not only has a young and energetic management team, but also has advanced business concepts and management experience.

Product Characteristics of IE4 Super Premium Motors:

1. Applicable to general places and machinery industry without special requirements, such as metal cutting machine tools, fans, pumps, transport machinery, mixers, agricultural machinery, food machinery, compressors, etc.

2. Installation dimensions and power levels meet GB, DIN, and IEC standards.

3. Ultra-high efficiency motor, the efficiency reaches IEC 60034- 30:2014 IE 4 or IE4 and GB 18613-2020 energy efficiency level 3 or 2.

4. The motor core is cold-rolled silicon steel sheet, F-grade insulation, high heat-resistant temperature, strong impact resistance, long insulation life.

5. The motor shell is made of aluminum alloy or cast iron with stable structure, low vibration, low noise, stable performance, safety and reliability.

Technical Data of IE4 Super Premium Motors:

Type	RatedOutput kW	Rated Speed min-1	Efficiency η % （IE4）	Power factor COSφ	Rated current A			Rated Torque Nm	Ts/Tn	Tmax/Tn	Is/In
Type	RatedOutput kW	Rated Speed min-1	Efficiency η % （IE4）	Power factor COSφ	380V	400V	415V	Rated Torque Nm	Ts/Tn	Tmax/Tn	Is/In
YE4-80M1-4	0.75	1430	85.7	0.74	1.8	1.71	1.65	5.01	2.3	2.3	8.5
YE4-90S-4	1.1	1445	87.2	0.75	2.56	2.43	2.34	7.27	2.3	2.3	8.5
YE4-90L-4	1.5	1450	88.2	0.76	340	3.23	3.11	9.88	2.3	2.3	9.0
YE4-100L1-4	2.2	1455	89.5	0.79	4.73	4.49	4.33	14.4	2.3	2.3	9
YE4-100L2-4	3	1455	90.4	0.8	6.3	5.99	5.77	19.7	2.3	2.3	9.5
YE4-112M-4	4	1460	91.1	0.8	8.34	7.92	7.64	26.2	2.3	2.3	9.5
YE4-132S-4	5.5	1470	91.9	0.8	11.4	10.8	10.4	35.7	2	2.3	9.5
YE4-132M-4	7.5	1470	92.6	0.81	15.2	14.4	13.9	48.7	2	2.3	9.5
YE4-160M-4	11	1475	93.3	0.83	21.6	20.5	19.8	71.2	2	2.3	9.5
YE4-160L-4	15	1475	93.9	0.84	28.9	27.4	26.5	97.1	2	2.3	9.5
YE4-180M-4	18.5	1480	94.2	0.85	25.1	33.3	32.1	119.4	2	2.3	9.5
YE4-180L-4	22	1480	94.5	0.85	41.6	39.5	38.1	142	2	2.3	9.5
YE4-200L-4	30	1480	94.9	0.85	56.5	53.7	51.7	193.6	2	2.3	9
YE4-225S-4	37	1485	95.2	0.85	69.5	66	63.6	237.9	2	2.3	9
YE4-225M-4	45	1485	95.4	0.85	84.3	80.1	77.2	289.4	2	2.3	9
YE4-250M-4	55	1485	95.7	0.86	102	96.5	93	353.7	2	2.3	9
YE4-280S-4	75	1490	96	0.87	136	130	125	480.7	2	2.3	8.5
YE4-280M-4	90	1490	96.1	0.88	162	154	148	576.8	2	2.3	8.5
YE4-315S-4	110	1490	96.3	0.89	195	185	179	705	1.8	2.2	8.5
YE4-315M-4	132	1490	96.4	0.89	234	222	214	846	1.8	2.2	8.5
YE4-315L1-4	160	1490	96.6	0.9	280	266	256	1026	1.8	2.2	8.5
YE4-315L2-4	200	1490	96.7	0.9	349	332	320	1282	1.8	2.2	8.5
YE4-355M-4	250	1490	96.7	0.9	436	415	400	1602	1.8	2.2	8.5
YE4-355L-4	315	1490	96.7	0.9	550	522	504	2019	1.8	2.2	8.5

IE4 Super Premium Motors Overall and Mounting Dimension(B5/B35):

IE4 Electric Motor Overall and Mounting Dimension(B3)

FrameSize	Mountingdimension									Mounting dimension for B5(V1\V3)					Overalldimension
FrameSize	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	BB	HD	L
80M	125	100	50	19	40	6	15.5	80	10X14	130	1 10	160	M8	3.5	157	158	129	125	209	290
90S	140	100	56	24	50	8	20	90	10X14	130	1 10	160	M8	3.5	173	175	140	125	230	325
90L	140	125	56	24	50	8	20	90	10X14	130	110	160	M8	3.5	173	175	140	150	230	350
1O0L	160	140	63	28	60	8	24	100	12X16	165	130	200	M10	3.5	196	198	156	172	256	400
112M	190	140	70	28	60	8	24	112	12X16	165	130	200	M10	3.5	227	219	166	180	278	450
132S	216	140	89	38	80	10	33	132	12X16	215	180	250	M12	4	262	258	188	186	320	475
132M	216	178	89	38	80	10	33	132	12X16	215	180	250	M12	4	262	258	188	224	320	515
160M	254	210	108	42	110	12	37	160	15X18	265	23 0	300	M12	4	304	315	242	260	402	610
160L	254	254	108	42	110	12	37	160	15X18	265	230	300	M12	4	304	315	242	304	402	655

SIVO Motor Also Produces Other Motors:

Bathroom Fan Motor、Exhaust Fan Motor for Cowshed、Single Phase Exhaust Fan Motor、Three-phase Exhaust Fan Motor、Restaurant Exhaust Fan Motor、Portable Eco-Friendly Air Cooler Motor、Evaporative cooler AC Motor

Zhejiang Fangyuan Sifu Mechanical and Electrical Co., Ltd. is located at No. 2479, Haifeng Road, Taizhou bay new area (3 kilometers from the east exit of Jiaojiang Coastal Expressway, 10 kilometers from Taizhou Airport, and 20 kilometers from Taizhou High-speed Railway Station). It covers an area of 43 acres and has a standardized workshop of 35,000 square meters. It is equipped with more than 50 sets of automatic CNC lathes, CNC grinders, CNC milling machines, machining centers, high-speed punching machines and other metal processing equipment, and equipped with automatic inserting winding line, spraying line, automatic assembly line and other advanced equipment, there are domestic leading wind tunnel laboratories, test centers, and motor type laboratories.

SIVO can undertake technical negotiation and ordering of various special motors with special needs of users. Installation dimensions (including external dimensions) are made according to user requirements.
